Material Mild Steel
Connection Type 3-Phase
Model Name/Number TTP
Automation Grade Semi-Automatic
Power Source 3-Phase 415V @ 50 Hz
Display Type LCD & LED
Color Simens Grey
Voltage up to 132 KV
Frequency 50Hz (Other Range on Request)
Air Supply Air Vent
Ambient Temperature 5 to 45 Degree
Capacity up to 30MVA
Control Motorized
Input Supply 3-Phase 415V @ 50 Hz
No. Of Phase 3-Phase
Accuracy 0.1%

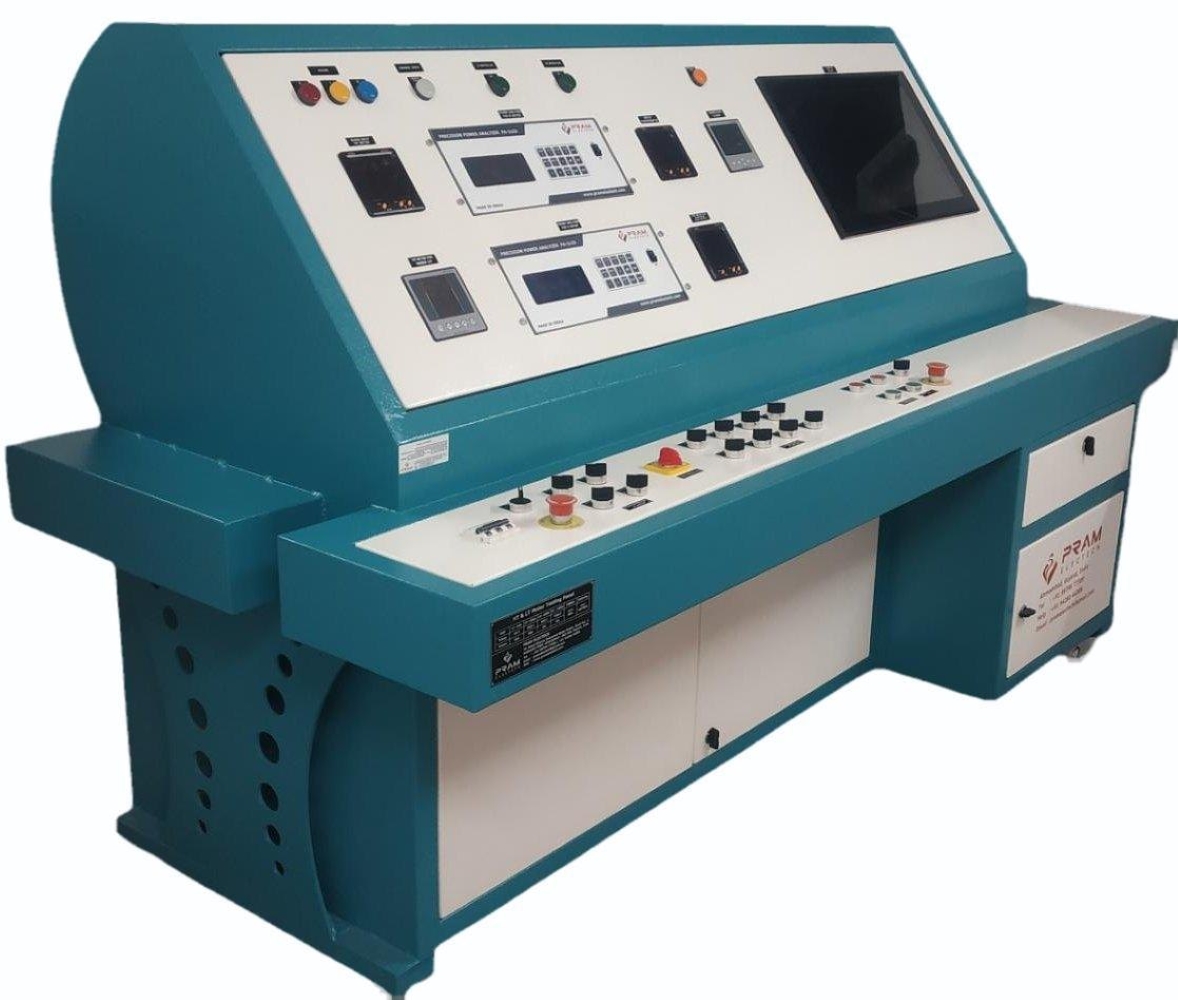

Usage/Application Transformer Routine Test
I Deal In New Only
Brand PRAM
Country of Origin Made in India
Useful for No Load Test (OC), Load Loss Test (SC), Double Voltage Double Frequency Test High Voltage Test (Other Test on request).
A Single Measurement and control center.
Electrically interlocked and safe operation. (Over Voltage & Over Current Protection)
Motorized control of output power for easy operation.
Rotary selector switch to select test for easy operation.
Indication Lamps for R, Y, B, Test On, Emergency & Tower Light with Siren.
Push buttons of Test ON / OFF and Motorized for easy operation.
Emergency Stop Switch with indication to avoid serious accident.
Zero Interlock Facility.
All Electrical Solutions under one roof.
Compliance to relevant IS & Other Standards.
