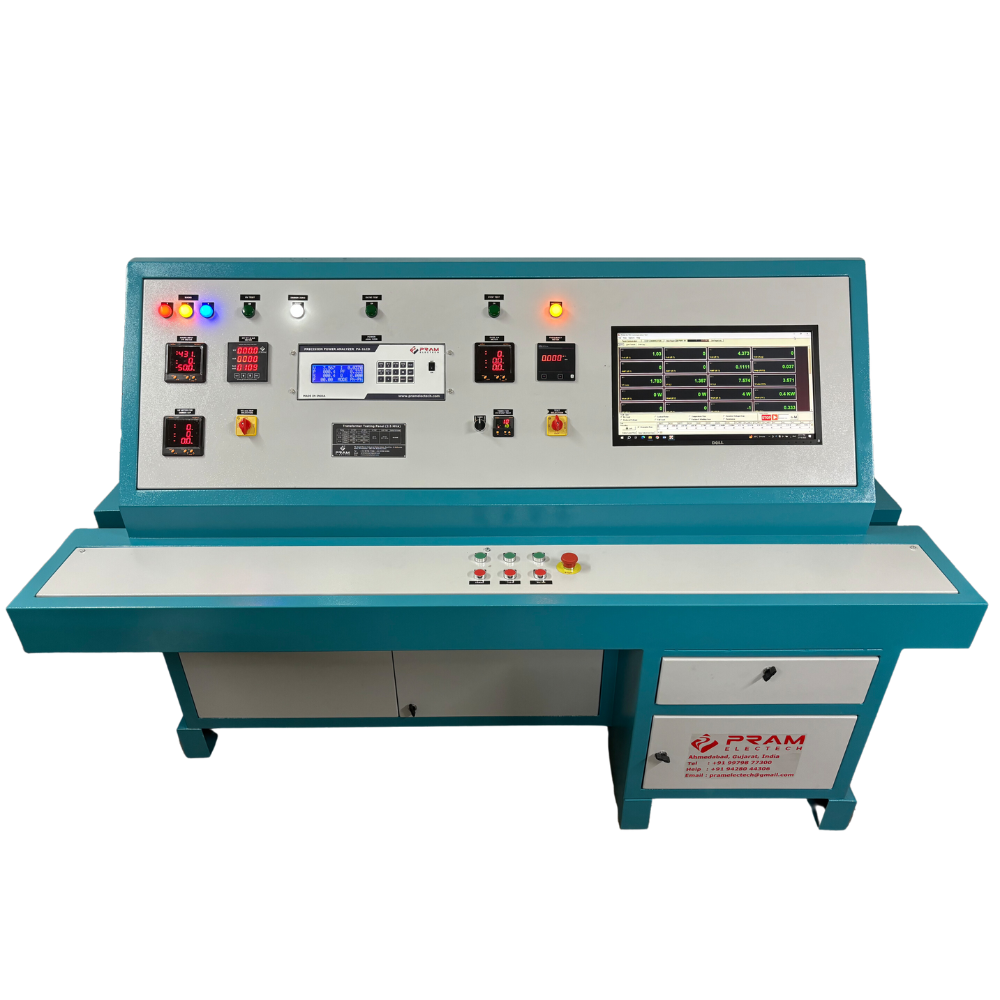

A transformer testing panel is an industrial, high-performance unit designed to test transformer parameters like voltage, current, insulation, and losses. These panels (or benches) support routine tests such as no-load, full-load, high voltage (HV), and induced overvoltage (DVDF) tests to ensure efficiency and safety
Key Features and Functions
• Automated Testing: Modern panels provide automated test reports, computerized data recording, and touchscreen control for easy operation.
• Comprehensive Testing: The unit enables multiple tests, including:
o No Load Test (OC Test): To determine core loss.
o Full Load Test (SC Test): To determine copper loss.
o High Voltage Test (HVT): To check insulation strength.
o Double Voltage Double Frequency (DVDF) Test: To check inter-turn insulation.
• Protection Features: Panels are equipped with electrical interlocks, emergency stops, zero interlocks, and protection against overvoltage and overcurrent.
• Components: Key components often include a voltage regulator (dimmer), power analyzer, digital meters (voltmeter, ammeter), and indicator lights
Applications
• Transformer Manufacturing: Used by manufacturers for routine, type, and special tests on distribution and power transformers.
• Repairs and Maintenance: Utilized by repair shops to diagnose defects in existing transformers.
• Laboratory Testing: Ideal for research institutions to analyze transformer performance.
