KEY FEATURES
• Voltage Rating:- 150V / 600V / 1200V (Phase – Neutral)
• Current Rating:- 20A / 40A / 80A / 160A / 250A / 300A
• ± 0.2% Accurate Measurement as per IS 12615
• Water Cooled Eddy Current Dynamometer along with Torque Controller & Test Bed for the Load of Motor
• Test to be Conduct:- No – Load Test, Reduce Voltage Test, Locked Rotor Test, Pull up Torque Test, Full Load (Part Load Test), Momentary Over Load Test, Temperature Rise Test, Friction & Windage Loss Test, Etc..
• Measurement- Voltage, Current, Power, Power Factor, Frequency, Output Power, RPM, CRPM, %Slip, Direct Efficiency, Torque of Motor
• 3-Phase Power Analyzer with Torque Correction as per IS 12615
• Motor Reverse / Forward (Phase Change Over) Switch Provision for 3-Phase Motor
• It Covers Selection Switch for 1-Phase / DOL / Star – Delta Motor Output (As per Requirement)
• Push Buttons for Motor Start / Stop, Variac Increase / Decrease & Emergency Stop
• Indication Lamps Mains R, Y, B, Test ON, Variac Zero & Emergency ON
• Motor Direct Efficiency by Direct Method & PLL (Additional Summation Method) as per IS 12615, IS 15999
• Serial Interface along with Software for Motor Test
MOTOR TESTING PANEL

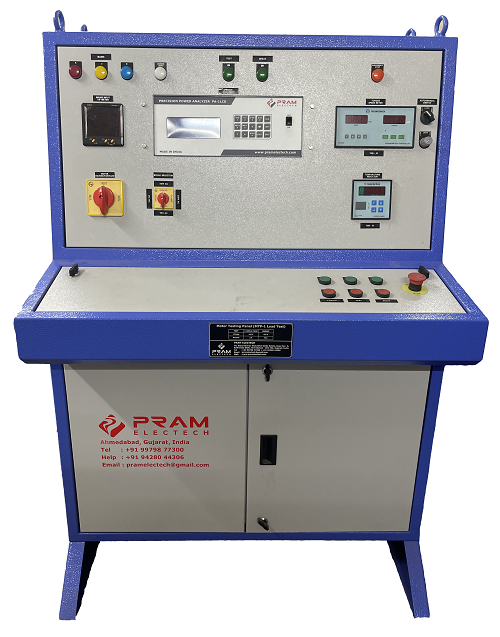

Pram Electech make Motor Testing Panel is useful for testing of the Induction motor. Testing Panel has include No – Load Test, Reduce Voltage Test, Locked Rotor Test, Pull up Torque Test, Full Load (Part Load Test), Momentary Over Load Test, Temperature Rise Test, Friction & Windage Loss Test, Etc... All controls, instruments, and connections are panel-mounted for ease of access and viewing
FEATURES & SPECIFICATIONS
Motor Capacity as per Customer Requirement
MCCB / MCB for over current protection
All the switchgears for each output (Selectable)
Motorized control for Output Voltage
Testing as per IS 12615
3-PHASE POWER ANALYZER
A power analyzer is used to measure the flow of power (w) in an electrical system. Pram Electech Power Analyzer is suitable for the testing of Induction Motors, Pumps, Transformers Etc..
TRMS Voltage Rating:- 150V / 600V / 1200V (Phase – Neutral)
TRMS Current Rating:- 20A / 40A / 80A / 160A / 250A / 300A Direct
It can Measures Input Parameters & Output Parameters like Voltage, Current, Power, Power Factor, Frequency, Output Power, RPM, CRPM, %Slip, Direct Efficiency, Torque of Motor
500 Test Data Storage Inbuilt
Serial interface along with Software
20 X 4 LCD Display for easy view along with 15 Key for easy operation
Selectable of Measurement Speed 1Sec / 0.5Sec / 0.25Sec
Tamper Proof Calibration & Long term stability
± 0.2% Accurate Measurement as per IS 12615
EDDY CURRENT DYNAMOMETERS
Eddy Current Dynamometers are used for Testing Engines from 5HP to 1000HP capacity. Precision Strain Gauge type Load Cell are used for sensing the Torque developed by the Engines. Its rugged and rigid design of Power absorbing systems are ensured for long working life. This is achieved by electro less nickel plating to the most critical parts which are always in contact with cooling water.
When the current flow through the field coils, then Magnetic field is produced. If the toothed rotor is rotated in the field, the magnetic flux changes and eddy current are produced in the end wall of cooling plate. These Eddy Currents buildup an opposite magnetic field and decelerate the rotor. The braking torque is transferred via the trunnion bearing mounted
Body to the load cell. The dynamometer load is regulated by changing the excitation current.
High accuracy Strain Gauge Load Cell
Electro less Nickel plated water passages
Dry running is avoided by water flow switch.
Bi-directional operations
Low inertia of Rotor
Smooth running of Rotor
Rugged construction
Long Life service
Compact design
DYNAMOMETER CONTROL UNIT (DCU)
Dynamometer Control Unit (DCU) developed precise controller for Torque. It is in-house developed microprocessor based instrument with unbeatable reliability and best-in-class repeatability. DCU is well known for precise and fast action in controlling the Torque. Speed measurement is done using 60 teeth gear arrangement which is cost effective and highly accurate.
Highly precise Torque Control
Easy Loading & Unloading
Password Protected Program
Over Speed Protection
Over Torque Protection
Modbus RTU protocol
Current Retransmission O/P
Built-in Power Card
Analog and Digital Isolation
