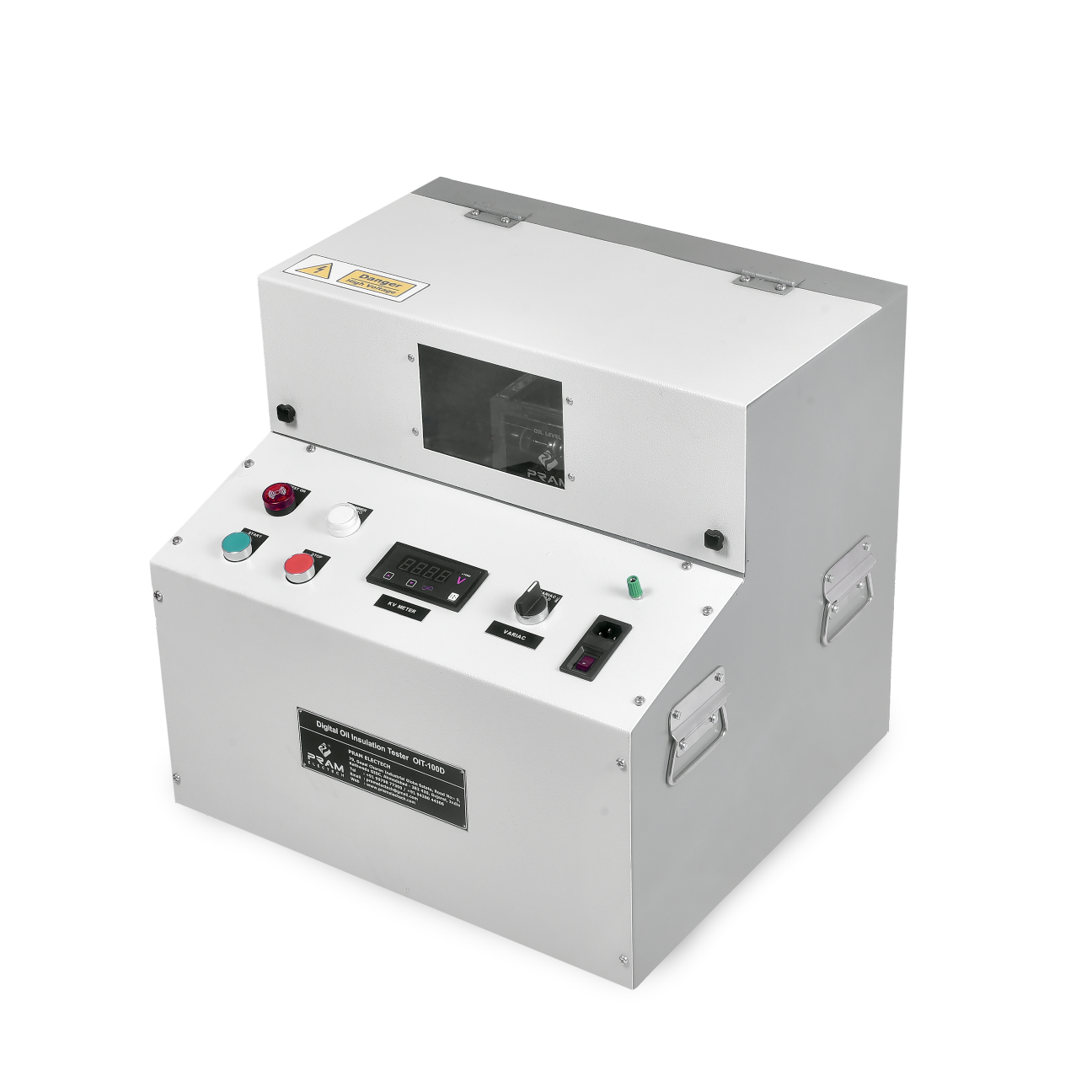

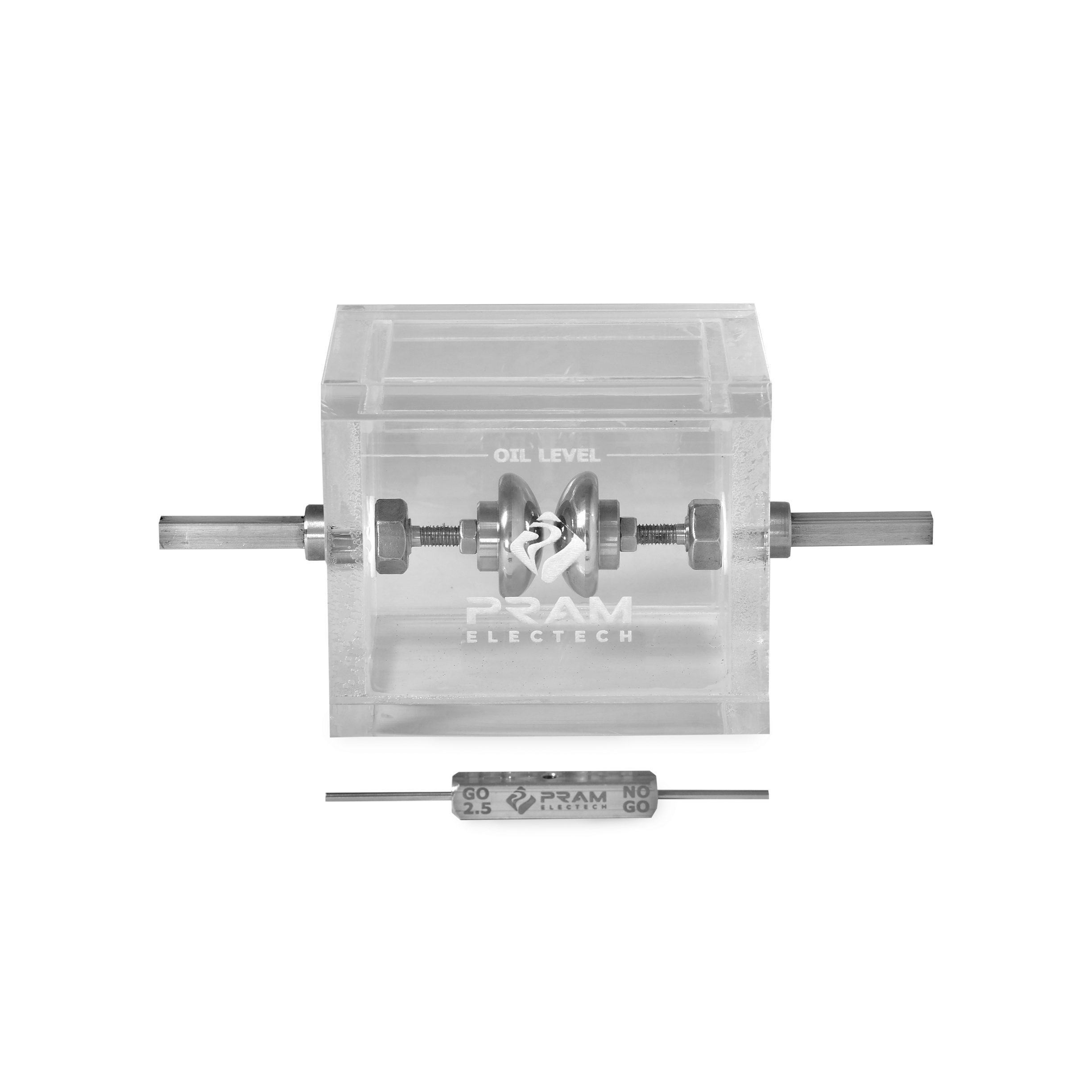

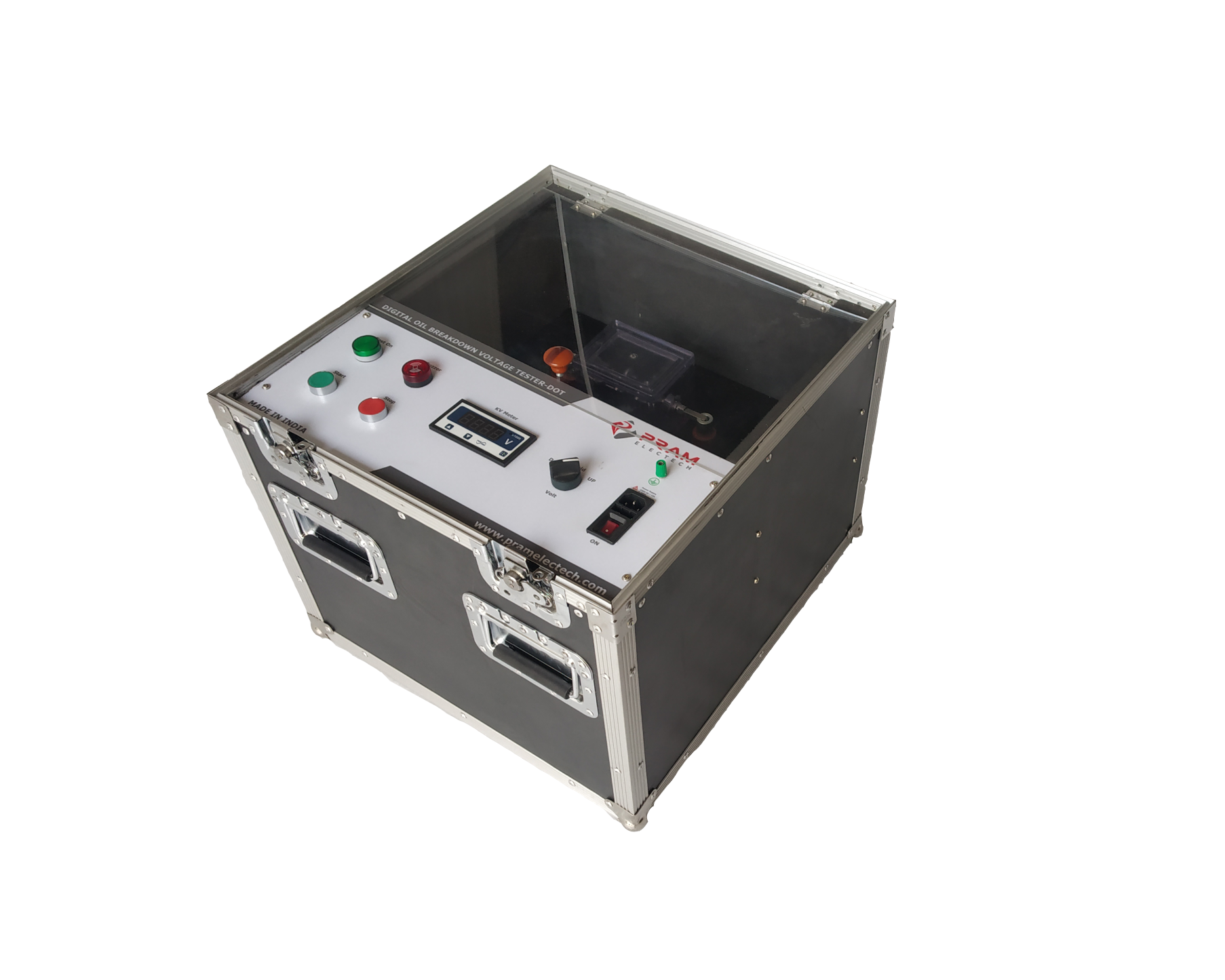

Oil Insulation Tester, Flight Case A dielectric breakdown voltage test is a measure of the electrical stress that an insulating oil can withstand without breakdown. This test is performed for verifying the dielectric strength of the oil of the transformer. Dielectric Strength is the maximum capacity to resist the voltage of insulating oil. FEATURES • Smooth operation from zero potential to FSV with motorized semi-automatic operation. Easy adjust – locking of electrode gap (2.5mm Go-NoGo Gauge). • Fast precision breakdown detection. Voltage Range : 60KV / 80KV / 100KV. HV Chamber Interlock, Zero Start Interlock, Overload trip for operator protection. Semi-automatic motorized control of output for easy operation. • Voltage rise rate 2 kV / Sec. Indications for Test ON (Audio as well as Visual Indication.) Pushbuttons for Test ON / OFF and motorized switch for easy operation. Digital display output (7 Segment LED Display). • Precise HV trip voltage measurement, Voltage will be hold after tripping. Epoxy cast, long life HV transformer for reliable life long operation. Compliance to IS 6792 & Other Standards.
