High Voltage Tester by Pram Electech

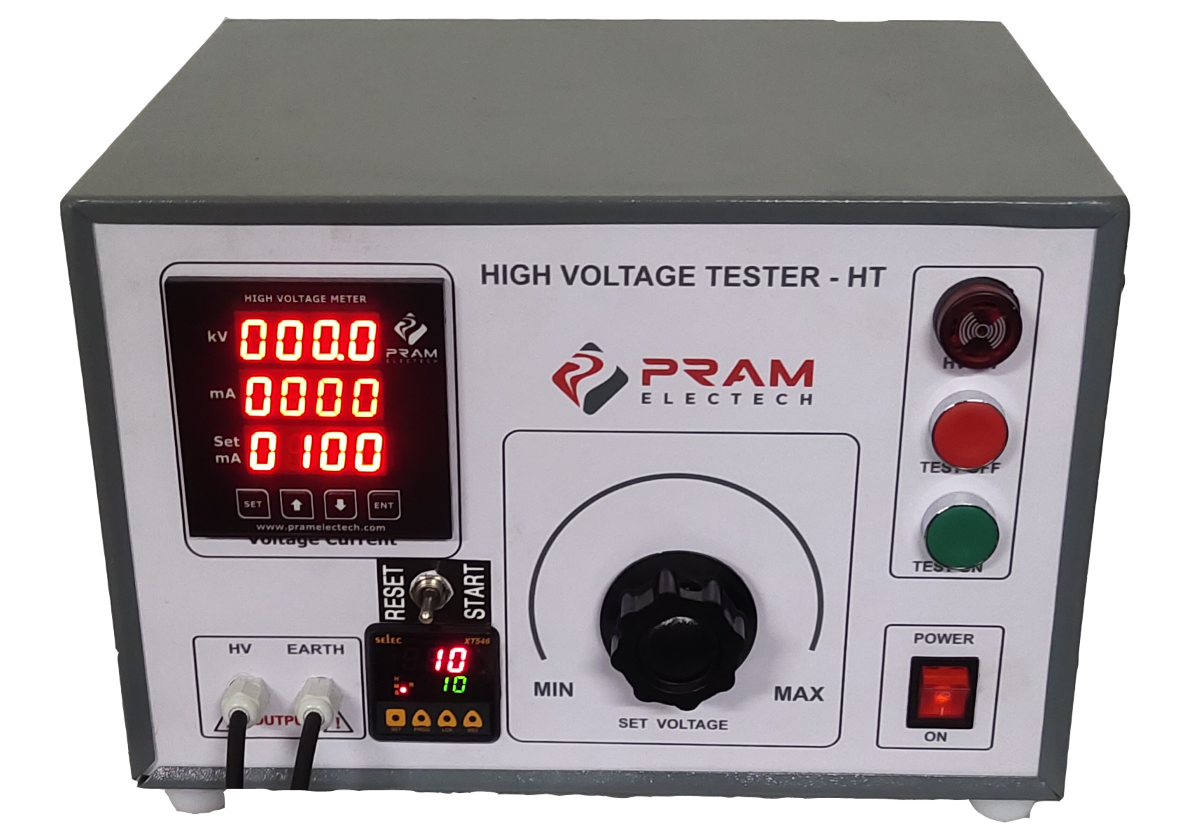

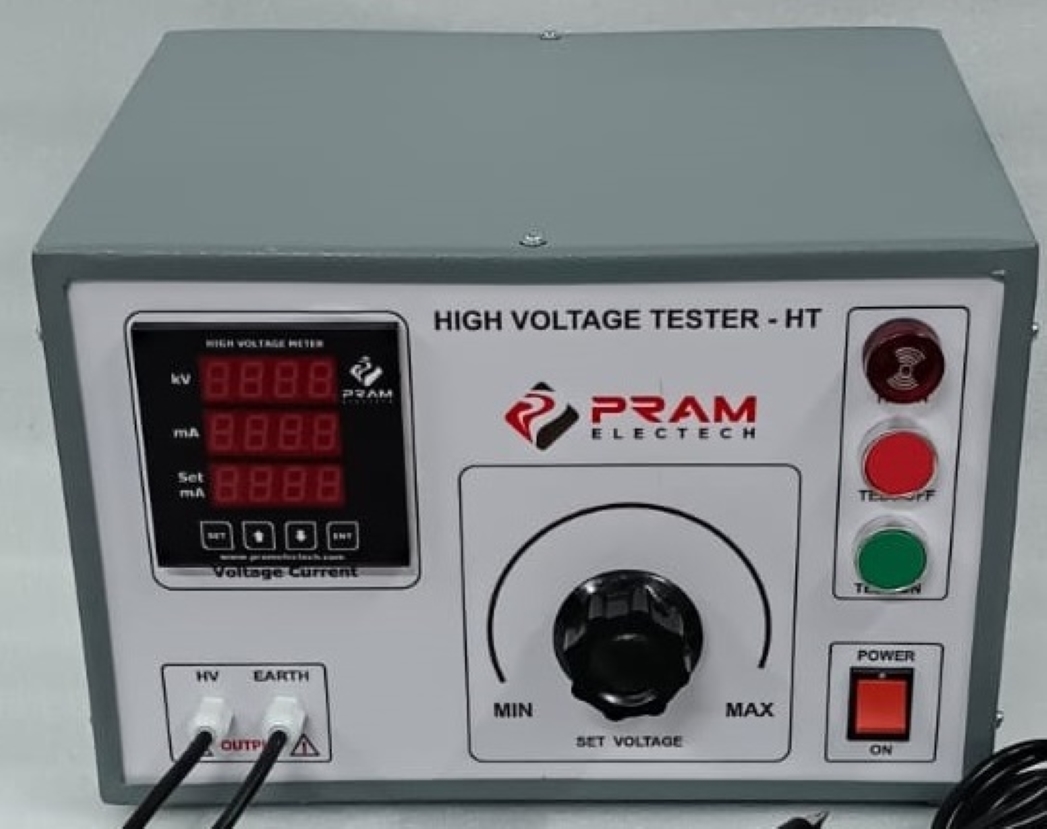

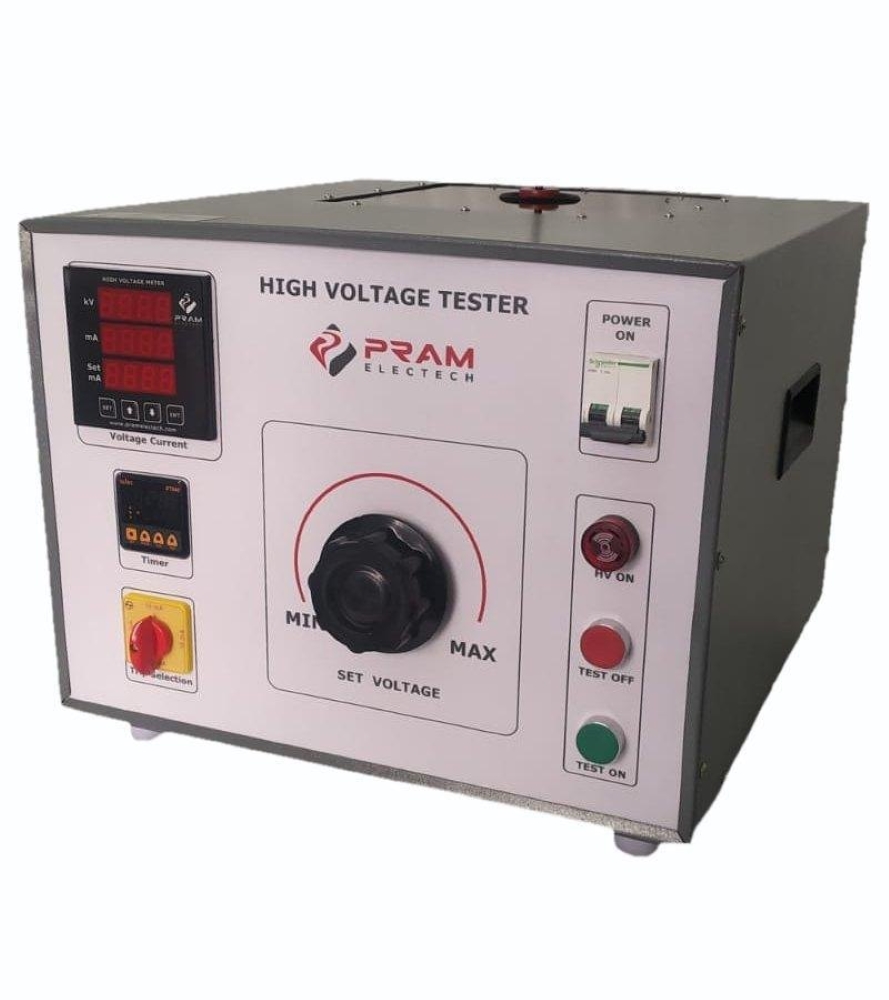

High Voltage Tester (05 KV, 100mA)

Contact Us

Phone Number

+919979877300

Email Address pramelectech@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address 31 Radhika Industrial park Bakrol-Bhavda Rd Bakrol Bujrang, Ahmedabad, Gujarat - 382433, India

India, India, 382433

Description

High Voltage Tester (05 KV, 100mA) High Voltage Breakdown Test set are useful for testing withstand (Flash-Over) voltage of Product like: Power and Distribution Transformers, Pumps, Inductors, Reactors, Coils, Switchgear Products, Plastics, Rubbers, PCB's, Panel Builders, Super Enameled, Winding Wire Manufacturers, Electrical Cables of all type, Insulating Materials, Electrical and Electronics Components Etc. Key Features • Range: 3KV to 100KV - 100mA to 1A (Depends on Requirements). • Continuously variable test voltage by motorized or manual operation (Depends on Requirements). • Digital KV & mA meter for read out High Voltage and Leakage Current. • Easy to Operate. • HT ON Buzzer as audio indication of High Voltage is present. • Selectable Leakage Current Range 25mA, 50mA, 75mA & 100mA (Other Range on Request). • Highly Sensitive electronic circuit for automatic tripping facility. • Zero Start Interlock facility to provide operator's safety. • Input Supply 230V ± 10% @ 50 Hz for 1-Phase & 415V ± 10% @ 50 Hz for 2-Phase & 3-Phase. • Epoxy Resin Cast type as well as Oil Immersed type Transformer as per Capacity of Transformer (Depends on Requirements).
