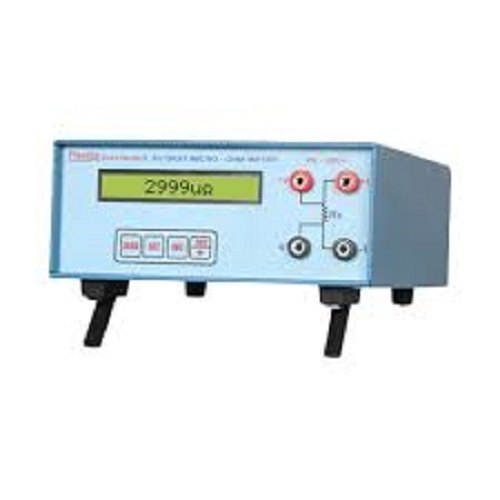

Digital Micro - Ohm Meter MODEL PE - 16R
(10A DC test current) manufactured by Prestige
Electronics is ideally suited for measuring very
low resistance down to 0.1 µΩ. Use of four
wire system eliminates lead resistance errors.
The PE-16R has 4½ digit LED display with
resistance measurement range from 2 mΩ to
2 kΩ with minimum resolution of 0.1µΩ. This
mains-operated meter is very rugged, portable
and light weight with high degree of accuracy,
stability and repeatability. The PE-16R is suitable
for measuring resistances of cables, wires,
conductors, busbars, switches, shunts, chokes,
motors, transformers (CTs & PTs), contactors
and other resistive/ low inductive materials.
s
WE ARE CONDUCTIVE TO RESISTIVE MEASUREMENTS MAR 2020
1
► 0.1 µΩ to 2 kΩ with basic accuracy of 0.05% in
7 different ranges
► 4½ digit LED display
► 0.1 µΩ resolution
► 10A DC max. test current
► True 4-wire/Kelvin resistance measurement
technique
► Low PPM/°C
► Fast response and field proven since more
than 2 decade
OPTIONAL FEATURES
► PC interface & Memory Storage
► Temperature Sensor & Corrected readings
► Comparator Facility
► Resistivity & % IACS Calculation
► Battery Operation & Field portable Version
APPLICATIONS
► All types of Wires & Cable resistance
► Switches, circuit breakers, MCBs resistance
► Busbar & Conductor resistance
► Motor winding resistance
► Transformer winding resistance
► Shunt resistance (upto 10000 Amp.)
► Joint resistance/bond testing
► Metallurgical applications
Transformer Oil Bdv Test Set
A dielectric breakdown voltage test is a measure of the electrical stress that an
insulating oil can withstand without breakdown. This test is performed for verifying
the dielectric strength of the oil of the transformer. Dielectric Strength is the
maximum capacity to resist the voltage of insulating oil.
FEATURES
• Smooth operation from zero potential to FSV with motorized semi-automatic operation.
• Easy adjust – locking of electrode gap (2.5mm Go-NoGo Gauge).
• Fast precision breakdown detection.
• Voltage Range : 60KV / 80KV / 100KV.
• HV Chamber Interlock, Zero Start Interlock, Overload trip for operator protection.
• Semi-automatic motorized control of output for easy operation.
• Voltage rise rate 2 kV / Sec.
• Indications for Test ON (Audio as well as Visual Indication.)
• Pushbuttons for Test ON / OFF and motorized switch for easy operation.
• Digital display output (7 Segment LED Display).
• Precise HV trip voltage measurement, Voltage will be hold after tripping.
• Epoxy cast, long life HV transformer for reliable life long operation.
• Compliance to IS 6792 & Other Standards.
• OIL INSULATION TESTER OIT-100D & OIT-100F
Oil Bdv Test Set
