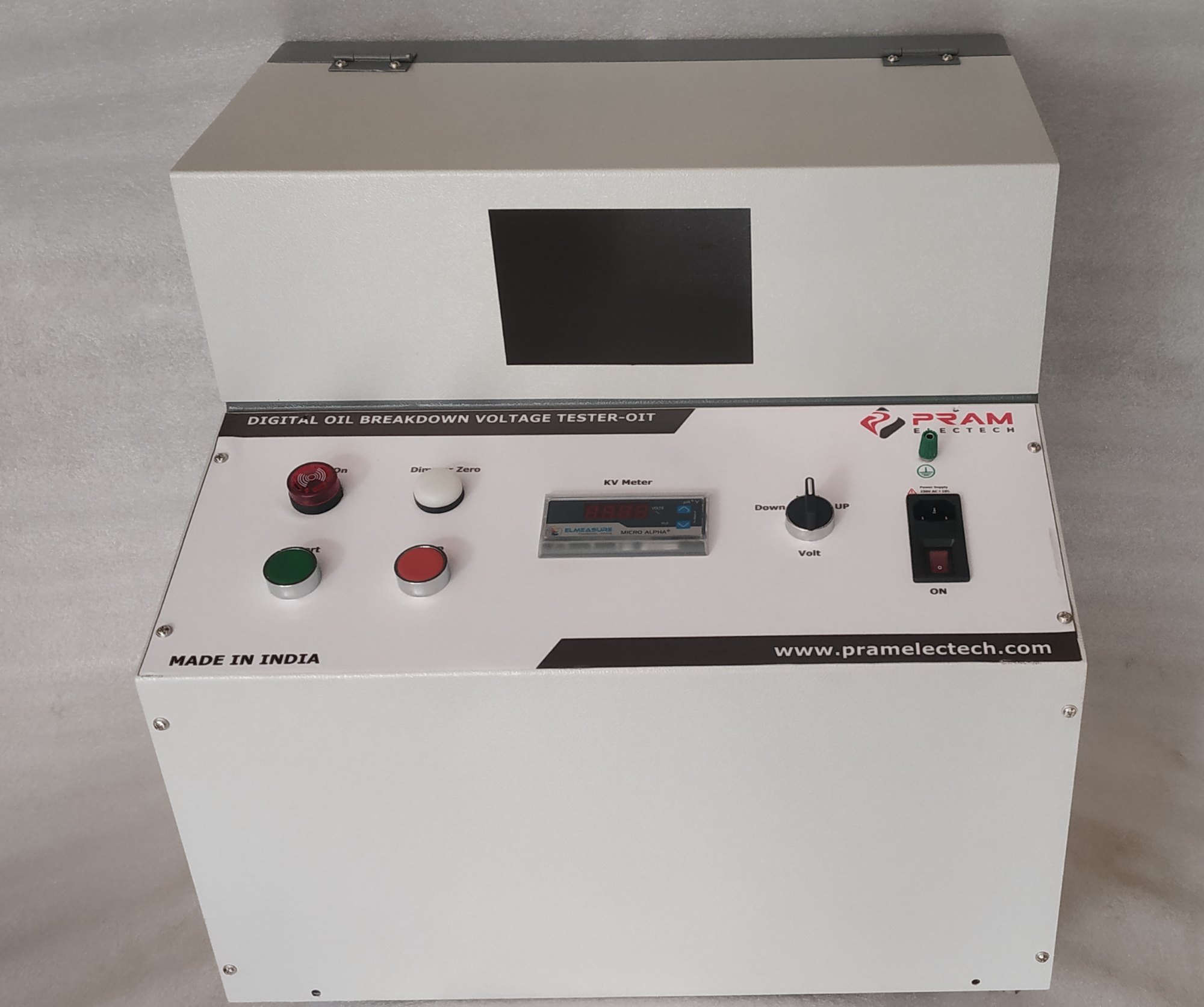

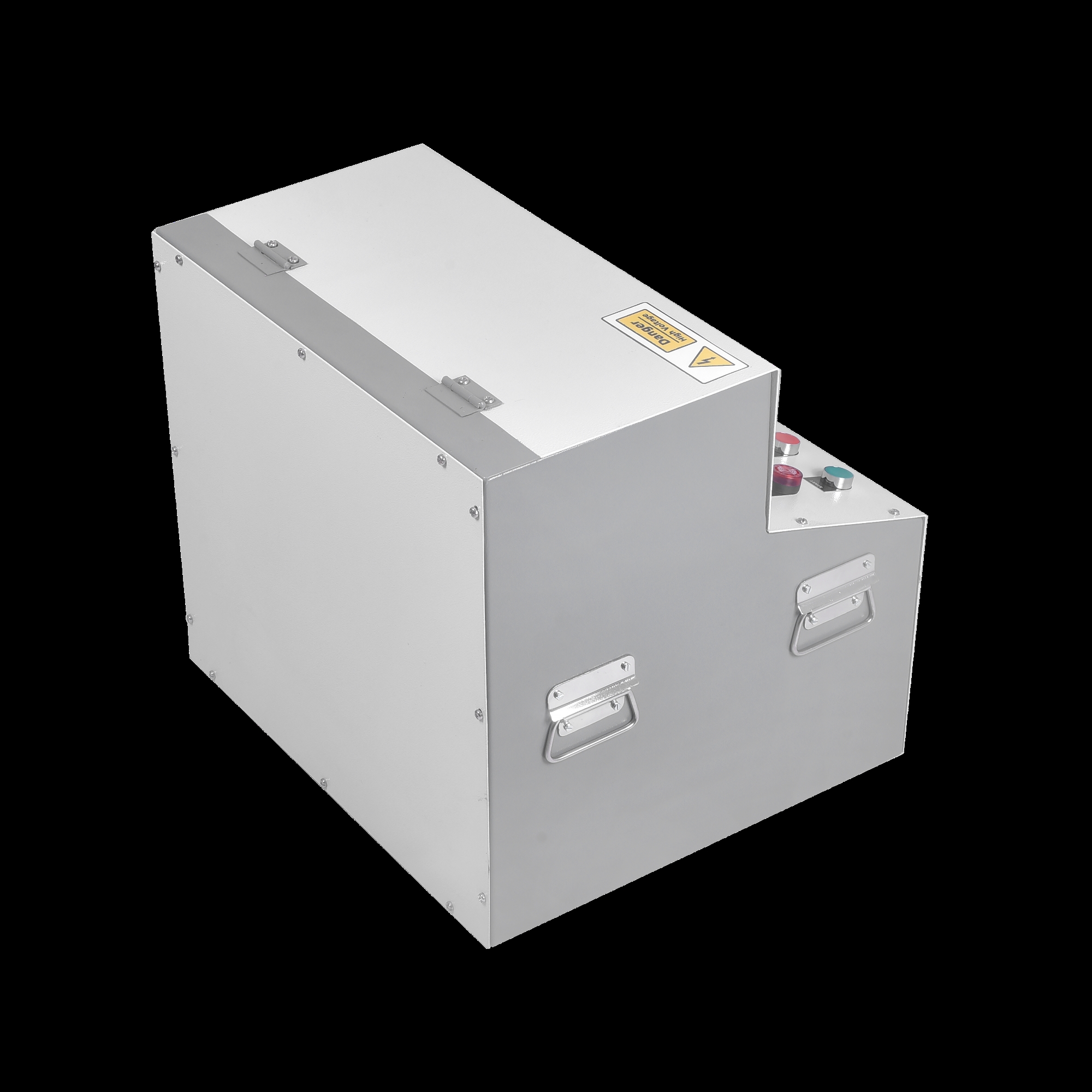

Oil Insulation Tester by Pram Electech

100kv Oil Insulation Tester

Contact Us

Phone Number

+919824401075

Email Address pramelectech@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address 31 Radhika Industrial park Bakrol-Bhavda Rd Bakrol Bujrang, Ahmedabad, Gujarat - 382433, India

India, India, 382433

Description

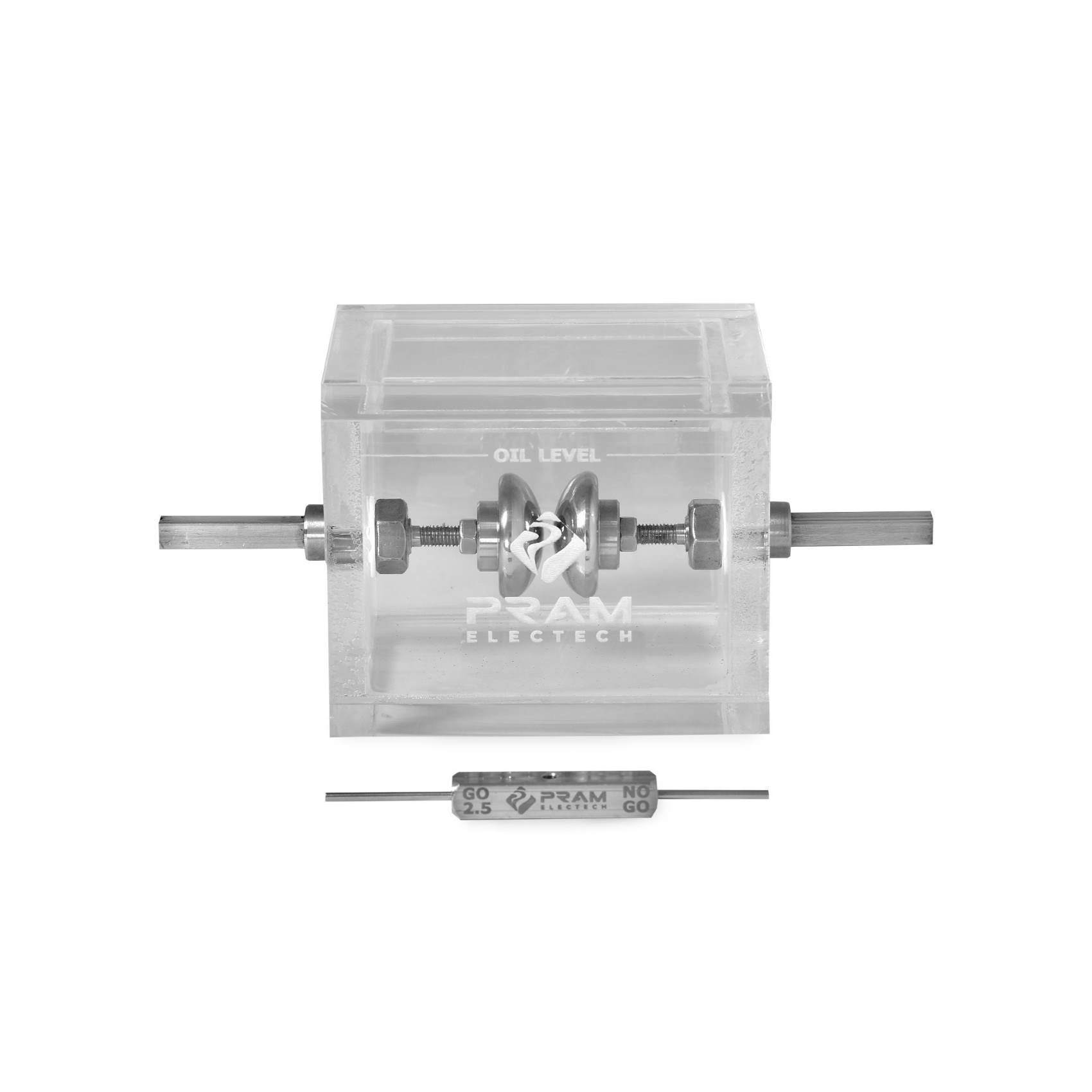

A dielectric breakdown voltage test is a measure of the electrical stress that an insulating oil can withstand without breakdown. This test is performed for verifying the dielectric strength of the oil of the transformer. Dielectric Strength is the maximum capacity to resist the voltage of insulating oil. • Smooth operation from zero potential to FSV with motorized (Automatic) operation. • Easy adjust – locking of electrode gap (2.5mm Go-NoGo Gauge). • Fast precision breakdown detection. • Voltage Range : 60KV / 80KV / 100KV. • HV Chamber Interlock, Zero Start Interlock, Overload Trip for operator protection. • Semi-autometic Motorized control of output for easy operation. • 2 kV / Sec Voltage Rise Rate. • Indications for Test ON Audio as well as Visual Indication. • Pushbuttons of Test ON / OFF and Motorized Switch for easy operation. • Digital Display Output (7 Segment LED Display). • Precise HV trip voltage measurement, voltage hold after trip. • Epoxy cast, long life HV transformer for reliable life long operation. • Compliance to IS 6792 & Other Standards.

Keywords

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image
Testing Equipment

Electric Oven Control Panels

INR 18500

6814772a5d263414004dd4a4 Card 2

product image
Testing Equipment

watt Loss Tester

INR 58500

6814772a5d263414004dd4a4 Card 2

product image
Oil Bdv Test Set

Transformer Oil Bdv Test Set

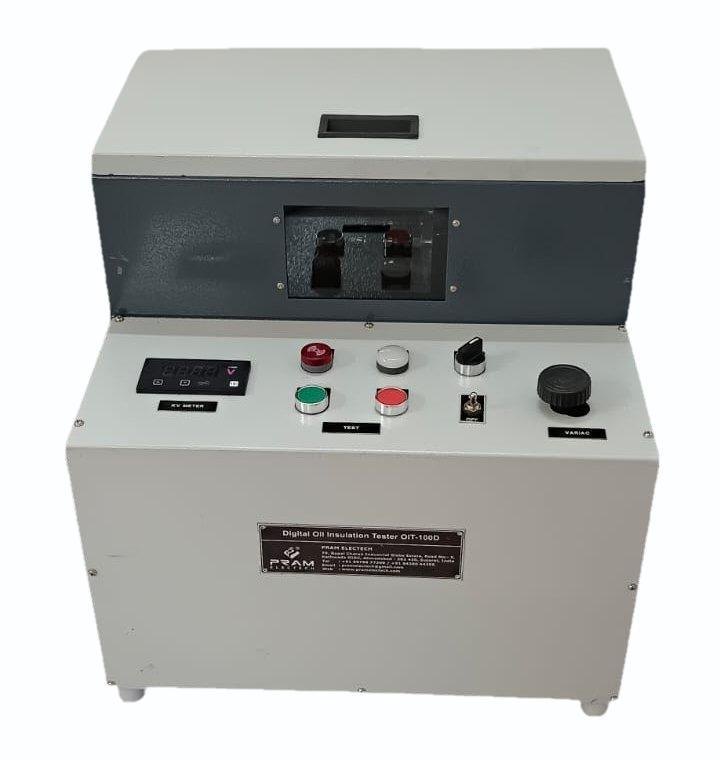

Transformer Oil Bdv Test Set A dielectric breakdown voltage test is a measure of the electrical stress that an insulating oil can withstand without breakdown. This test is performed for verifying the dielectric strength of the oil of the transformer. Dielectric Strength is the maximum capacity to resist the voltage of insulating oil. FEATURES • Smooth operation from zero potential to FSV with motorized semi-automatic operation. • Easy adjust – locking of electrode gap (2.5mm Go-NoGo Gauge). • Fast precision breakdown detection. • Voltage Range : 60KV / 80KV / 100KV. • HV Chamber Interlock, Zero Start Interlock, Overload trip for operator protection. • Semi-automatic motorized control of output for easy operation. • Voltage rise rate 2 kV / Sec. • Indications for Test ON (Audio as well as Visual Indication.) • Pushbuttons for Test ON / OFF and motorized switch for easy operation. • Digital display output (7 Segment LED Display). • Precise HV trip voltage measurement, Voltage will be hold after tripping. • Epoxy cast, long life HV transformer for reliable life long operation. • Compliance to IS 6792 & Other Standards. • OIL INSULATION TESTER OIT-100D & OIT-100F
